Details

  • •Low-voltage industrial components
  • •Switch disconnector (low voltage)
  • •1 KOM
  • •EATON

Technical specifications

Max. rated operation voltage Ue AC690V
Rated permanent current at AC-23, 400 V13.3A
Rated operating voltage690 - 690V
Rated operation power at AC-23, 400 V5.5kW
Version as safety switchNo
Version as main switchNo
Version as emergency stop installationNo
Number of auxiliary contacts as normally closed contact0
Rated short-time withstand current lcw0.32kA
Version as reversing switchNo
Rated operation power at AC-3, 400 V5.5kW
Number of switches1
Version as maintenance-/service switchNo
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Rated permanent current Iu20A
Rated permanent current at AC-21, 400 V20A
Conditioned rated short-circuit current Iq6kA
Motor drive optionalNo
Voltage release optionalNo
Device constructionBuilt-in device fixed built-in technique
Suitable for front mounting 4-holeYes
Colour control elementBlack
Suitable for distribution board installationNo
Switching power at 400 V5.5kW
Suitable for floor mountingNo
With pre-assembled cablingNo
Degree of protection (NEMA)12
InterlockableNo
Width48mm
Type of electrical connection of main circuitScrew connection
Number of poles12
Suitable for front mounting centreNo
Type of control elementShort thumb-grip
Suitable for intermediate mountingNo
Motor drive integratedNo
Degree of protection (IP), front sideIP65
Height48mm
Depth124mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

T0-6-8348/E

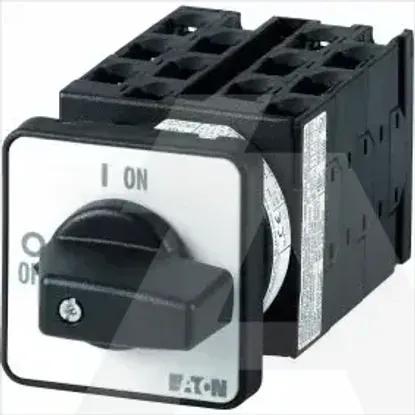

Main Product Image
