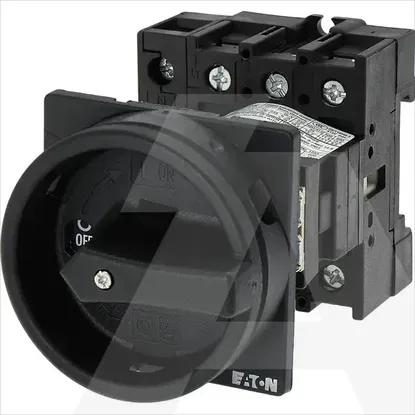

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally closed contact0
Type of electrical connection of main circuitScrew connection
Height65mm
Rated operation power at AC-3, 400 V7.5kW
Rated operating voltage690 - 690V
Degree of protection (IP), front sideIP65
Conditioned rated short-circuit current Iq80kA
Number of poles4
Version as safety switchNo
Version as emergency stop installationYes
Version as maintenance-/service switchYes
Motor drive integratedNo
Width83mm
Depth131mm
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Number of switches1
InterlockableYes
Rated permanent current Iu25A
Type of control elementDoor coupling rotary drive
Version as main switchYes
Rated operation power at AC-23, 400 V13kW
Suitable for floor mountingNo
Colour control elementBlack
Suitable for front mounting 4-holeNo
Suitable for intermediate mountingNo
Max. rated operation voltage Ue AC690V
Suitable for front mounting centreNo
Motor drive optionalNo
Device constructionBuilt-in device fixed built-in technique
Rated permanent current at AC-23, 400 V25A
Rated permanent current at AC-21, 400 V25A
Voltage release optionalNo
Switching power at 400 V13kW
Suitable for distribution board installationNo
Degree of protection (NEMA)1
With pre-assembled cablingNo
Version as reversing switchNo
Rated short-time withstand current lcw0.64kA
