Details

  • •Low-voltage industrial components
  • •Switch disconnector
  • •1 KOM
  • •EATON

Technical specifications

Rated operation power at AC-3, 400 V5.5kW
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Rated permanent current Iu20A
Number of poles12
Number of switches1
Rated short-time withstand current lcw0.32kA
Version as safety switchNo
Degree of protection (IP), front sideIP65
Type of control elementToggle
InterlockableNo
Suitable for front mounting centreYes
Version as main switchNo
Motor drive integratedNo
Rated operating voltage690 - 690V
Type of electrical connection of main circuitScrew connection
Suitable for floor mountingNo
Suitable for front mounting 4-holeNo
Version as emergency stop installationNo
Suitable for distribution board installationNo
Suitable for intermediate mountingNo
Motor drive optionalNo
Rated operation power at AC-23, 400 V5.5kW
Colour control elementBlack
Version as maintenance-/service switchNo
Max. rated operation voltage Ue AC690V
Conditioned rated short-circuit current Iq6kA
Number of auxiliary contacts as change-over contact0
Voltage release optionalNo
Switching power at 400 V5.5kW
Device constructionBuilt-in device fixed built-in technique
Degree of protection (NEMA)12
Rated permanent current at AC-23, 400 V13.3A
Rated permanent current at AC-21, 400 V20A
Version as reversing switchNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

T0-6-8348/EZ

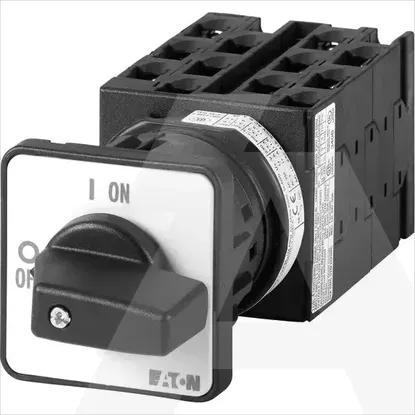

Main Product Image
