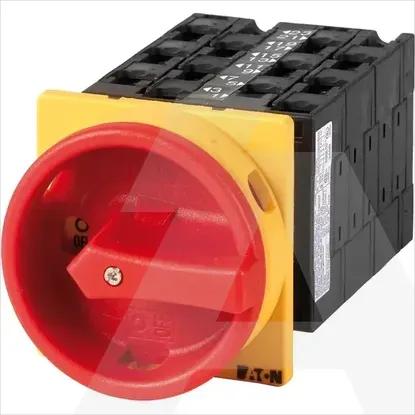

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Height74mm
Width65mm
Rated operation power at AC-3, 400 V11kW
Number of auxiliary contacts as normally closed contact0
Degree of protection (IP), front sideIP65
Depth162mm
Rated operating voltage690 - 690V
Rated permanent current Iu32A
Number of auxiliary contacts as normally open contact0
Number of poles12
Conditioned rated short-circuit current Iq1kA
Version as safety switchNo
Number of auxiliary contacts as change-over contact0
Version as emergency stop installationYes
Type of electrical connection of main circuitScrew connection
InterlockableYes
Number of switches1
Motor drive integratedNo
Type of control elementDoor coupling rotary drive
Version as main switchYes
Suitable for intermediate mountingNo
Suitable for front mounting centreYes
Version as maintenance-/service switchYes
Rated short-time withstand current lcw0.65kA
Colour control elementRed
Suitable for floor mountingNo
Suitable for front mounting 4-holeNo
Max. rated operation voltage Ue AC690V
Suitable for distribution board installationNo
Rated permanent current at AC-21, 400 V32A
Rated operation power at AC-23, 400 V15kW
Device constructionBuilt-in device fixed built-in technique
Switching power at 400 V15kW
Rated permanent current at AC-23, 400 V32A
Motor drive optionalNo
Version as reversing switchNo
Voltage release optionalNo
With pre-assembled cablingNo
Degree of protection (NEMA)12
