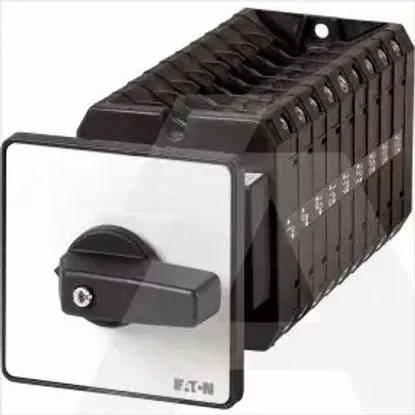

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Rated operating voltage690 - 690V
Width88mm
Rated operation power at AC-3, 400 V22kW
Height88mm
Depth264mm
Number of poles18
Rated permanent current Iu63A
Degree of protection (IP), front sideIP65
Number of auxiliary contacts as change-over contact0
Conditioned rated short-circuit current Iq2kA
Number of switches1
InterlockableNo
Rated permanent current at AC-21, 400 V63A
Device constructionBuilt-in device fixed built-in technique
Rated short-time withstand current lcw1.3kA
Rated operation power at AC-23, 400 V30kW
Max. rated operation voltage Ue AC690V
Version as maintenance-/service switchNo
Type of control elementShort thumb-grip
Type of electrical connection of main circuitScrew connection
Voltage release optionalNo
Suitable for floor mountingYes
Version as main switchNo
Colour control elementBlack
Suitable for front mounting 4-holeNo
Motor drive optionalNo
Motor drive integratedNo
Version as emergency stop installationNo
Suitable for intermediate mountingYes
Suitable for distribution board installationNo
Version as safety switchNo
Suitable for front mounting centreNo
Version as reversing switchNo
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V63A
Degree of protection (NEMA)12
Switching power at 400 V30kW
