Details

  • •Low-voltage industrial components
  • •Switch disconnector
  • •1 KOM
  • •EATON

Technical specifications

Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V22kW
Number of switches1
Motor drive integratedNo
Suitable for floor mountingYes
Type of electrical connection of main circuitScrew connection
Colour control elementBlack
Number of poles13
Rated permanent current Iu63A
Degree of protection (IP), front sideIP65
Number of auxiliary contacts as normally closed contact0
Max. rated operation voltage Ue AC690V
Suitable for front mounting 4-holeNo
Type of control elementDoor coupling rotary drive
Version as emergency stop installationNo
Rated operation power at AC-23, 400 V30kW
Suitable for front mounting centreNo
Conditioned rated short-circuit current Iq2kA
Suitable for intermediate mountingYes
InterlockableYes
Rated short-time withstand current lcw1.3kA
Version as maintenance-/service switchYes
Version as main switchYes
Rated operating voltage690 - 690V
Version as safety switchNo
Suitable for distribution board installationNo
Number of auxiliary contacts as change-over contact0
Switching power at 400 V30kW
Motor drive optionalNo
Rated permanent current at AC-21, 400 V63A
Rated permanent current at AC-23, 400 V63A
Degree of protection (NEMA)12
Version as reversing switchNo
Device constructionBuilt-in device fixed built-in technique
Voltage release optionalNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

T5B-7-8349/V/SVB-SW

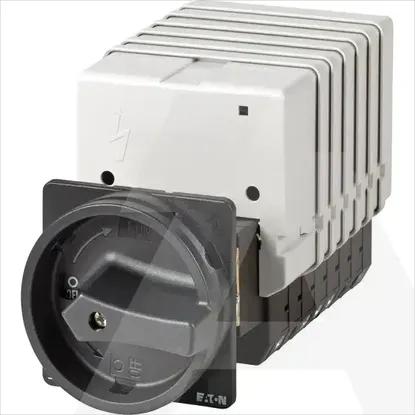

Main Product Image
