Details

  • •Low-voltage industrial components
  • •Switch disconnector (low voltage)
  • •1 KOM
  • •EATON

Technical specifications

Width88mm
Number of auxiliary contacts as normally open contact2
Height88mm
Rated operation power at AC-3, 400 V22kW
Depth221mm
Number of auxiliary contacts as normally closed contact1
Suitable for front mounting 4-holeNo
Motor drive optionalNo
Conditioned rated short-circuit current Iq2kA
InterlockableYes
Version as main switchYes
Motor drive integratedNo
Degree of protection (IP), front sideIP65
Type of electrical connection of main circuitScrew connection
Max. rated operation voltage Ue AC690V
Number of switches1
Number of auxiliary contacts as change-over contact0
Suitable for distribution board installationNo
Rated short-time withstand current lcw1.3kA
Number of poles9
Rated permanent current Iu63A
Type of control elementDoor coupling rotary drive
Suitable for front mounting centreNo
Suitable for intermediate mountingYes
Suitable for floor mountingYes
Rated operating voltage690 - 690V
Colour control elementBlack
Version as maintenance-/service switchYes
Rated operation power at AC-23, 400 V30kW
Version as emergency stop installationNo
Version as safety switchNo
Version as reversing switchNo
Voltage release optionalNo
Device constructionBuilt-in device fixed built-in technique
Rated permanent current at AC-21, 400 V63A
With pre-assembled cablingNo
Switching power at 400 V30kW
Rated permanent current at AC-23, 400 V63A
Degree of protection (NEMA)12
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

T5B-6-15168/V/SVB-SW

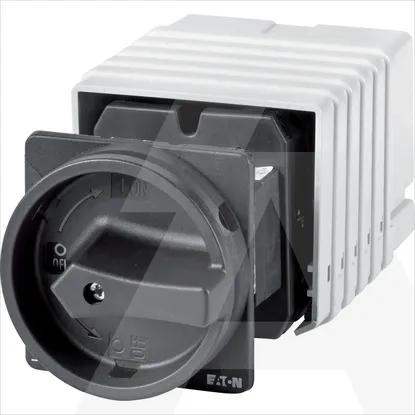

Main Product Image
