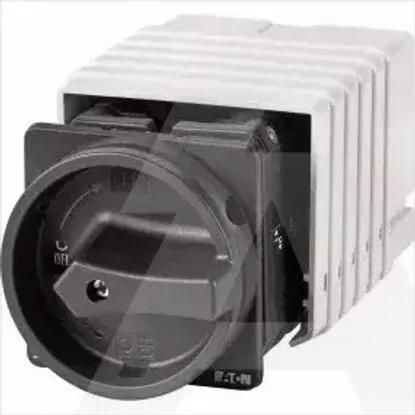

T5B-6-15168/EA/SVB-SW
Code: 1040189
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Max. rated operation voltage Ue AC690V
Rated permanent current at AC-23, 400 V63A
Version as main switchYes
Version as maintenance-/service switchYes
Version as safety switchNo
Number of poles9
Number of auxiliary contacts as normally open contact2
Conditioned rated short-circuit current Iq2kA
Device constructionBuilt-in device fixed built-in technique
Switching power at 400 V30kW
Voltage release optionalNo
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally closed contact1
Motor drive optionalNo
Motor drive integratedNo
Suitable for floor mountingNo
With pre-assembled cablingNo
Colour control elementBlack
Suitable for intermediate mountingNo
Type of control elementDoor coupling rotary drive
Depth206mm
InterlockableYes
Degree of protection (IP), front sideIP65
Suitable for front mounting 4-holeNo
Number of switches1
Rated operating voltage690 - 690V
Height88mm
Version as emergency stop installationNo
Rated permanent current Iu63A
Version as reversing switchNo
Rated operation power at AC-3, 400 V22kW
Rated short-time withstand current lcw1.3kA
Rated operation power at AC-23, 400 V30kW
Rated permanent current at AC-21, 400 V63A
Suitable for distribution board installationNo
Width88mm
Type of electrical connection of main circuitScrew connection
Degree of protection (NEMA)12
Suitable for front mounting centreYes
