Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Width88mm
Degree of protection (IP), front sideIP65
Conditioned rated short-circuit current Iq2kA
Number of poles9
Rated permanent current Iu63A
Number of auxiliary contacts as normally closed contact0
Rated operating voltage690 - 690V
Depth189mm
Height88mm
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V22kW
Number of switches1
Type of electrical connection of main circuitScrew connection
Version as emergency stop installationYes
Suitable for front mounting 4-holeNo
Suitable for front mounting centreYes
Motor drive integratedNo
Number of auxiliary contacts as change-over contact0
Max. rated operation voltage Ue AC690V
Version as main switchYes
InterlockableYes
Version as maintenance-/service switchYes
Motor drive optionalNo
Voltage release optionalNo
Type of control elementDoor coupling rotary drive
Suitable for floor mountingNo
Rated operation power at AC-23, 400 V30kW
Version as safety switchNo
Suitable for intermediate mountingNo
Suitable for distribution board installationNo
Rated short-time withstand current lcw1.3kA
Version as reversing switchNo
Rated permanent current at AC-21, 400 V63A
Switching power at 400 V30kW
Device constructionBuilt-in device fixed built-in technique
Colour control elementRed
Rated permanent current at AC-23, 400 V63A
Degree of protection (NEMA)12
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

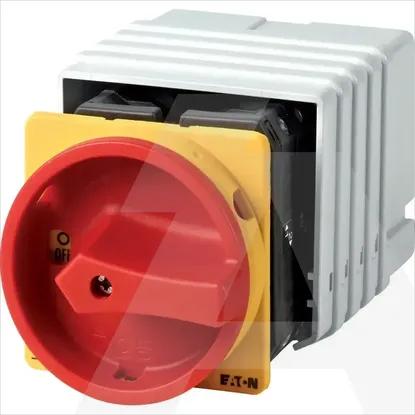

T5B-5-8345/EA/SVB
