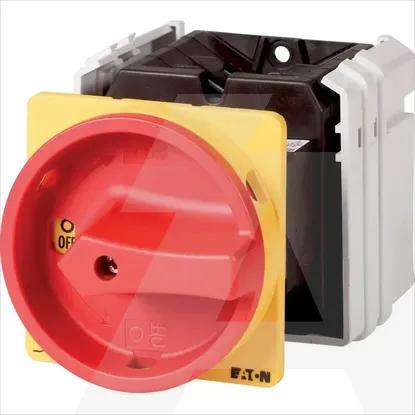

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
InterlockableYes
Type of electrical connection of main circuitScrew connection
Number of poles8
Number of auxiliary contacts as normally open contact0
Rated operating voltage690 - 690V
Width88mm
Number of switches1
Rated operation power at AC-3, 400 V22kW
Version as emergency stop installationYes
Degree of protection (IP), front sideIP65
Depth188mm
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Number of auxiliary contacts as normally closed contact0
Rated permanent current Iu63A
Type of control elementDoor coupling rotary drive
Height88mm
Version as main switchYes
Conditioned rated short-circuit current Iq2kA
Version as maintenance-/service switchYes
Rated operation power at AC-23, 400 V30kW
Colour control elementRed
Version as safety switchNo
Suitable for floor mountingYes
Rated short-time withstand current lcw1.3kA
Motor drive optionalNo
Voltage release optionalNo
Suitable for intermediate mountingYes
Suitable for front mounting 4-holeNo
Version as reversing switchNo
Switching power at 400 V30kW
Max. rated operation voltage Ue AC690V
Rated permanent current at AC-21, 400 V63A
With pre-assembled cablingNo
Degree of protection (NEMA)12
Suitable for front mounting centreNo
Device constructionBuilt-in device fixed built-in technique
Rated permanent current at AC-23, 400 V63A
Suitable for distribution board installationNo
