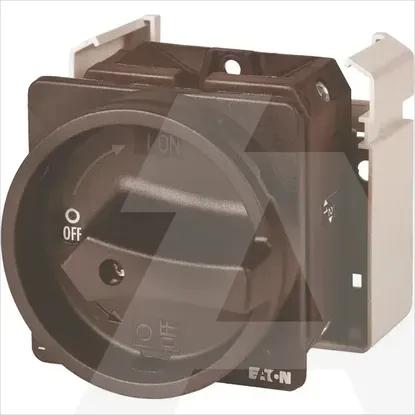

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of poles8
Rated operation power at AC-3, 400 V22kW
Type of electrical connection of main circuitScrew connection
Number of auxiliary contacts as normally closed contact0
Number of switches1
Degree of protection (IP), front sideIP65
Rated permanent current Iu63A
Width88mm
InterlockableYes
Number of auxiliary contacts as normally open contact0
Height88mm
Motor drive integratedNo
Rated operating voltage690 - 690V
Conditioned rated short-circuit current Iq2kA
Depth173mm
Number of auxiliary contacts as change-over contact0
Version as main switchYes
Type of control elementDoor coupling rotary drive
Version as emergency stop installationNo
With pre-assembled cablingNo
Version as safety switchNo
Suitable for floor mountingNo
Voltage release optionalNo
Rated short-time withstand current lcw1.3kA
Colour control elementBlack
Suitable for front mounting 4-holeNo
Device constructionBuilt-in device fixed built-in technique
Suitable for distribution board installationNo
Version as maintenance-/service switchYes
Suitable for front mounting centreYes
Rated permanent current at AC-21, 400 V63A
Motor drive optionalNo
Rated operation power at AC-23, 400 V30kW
Suitable for intermediate mountingNo
Max. rated operation voltage Ue AC690V
Switching power at 400 V30kW
Degree of protection (NEMA)12
Version as reversing switchNo
Rated permanent current at AC-23, 400 V63A
