Details

  • •Low-voltage industrial components
  • •Switch disconnector
  • •1 KOM
  • •EATON

Technical specifications

Rated operation power at AC-3, 400 V22kW
Number of auxiliary contacts as normally open contact2
Conditioned rated short-circuit current Iq2kA
Number of poles6
Rated permanent current Iu63A
Number of auxiliary contacts as normally closed contact0
Number of switches1
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Rated operating voltage690 - 690V
Degree of protection (IP), front sideIP65
InterlockableYes
Version as main switchYes
Version as emergency stop installationYes
Switching power at 400 V30kW
Version as safety switchNo
Voltage release optionalNo
Version as reversing switchNo
Rated permanent current at AC-21, 400 V63A
Suitable for intermediate mountingYes
Type of control elementDoor coupling rotary drive
Rated permanent current at AC-23, 400 V63A
Suitable for distribution board installationNo
Version as maintenance-/service switchYes
Suitable for front mounting centreNo
Motor drive optionalNo
Device constructionBuilt-in device fixed built-in technique
Rated operation power at AC-23, 400 V30kW
Rated short-time withstand current lcw1.3kA
Suitable for front mounting 4-holeNo
Colour control elementRed
Max. rated operation voltage Ue AC690V
Type of electrical connection of main circuitScrew connection
Degree of protection (NEMA)12
Suitable for floor mountingYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

T5B-4-15700/V/SVB

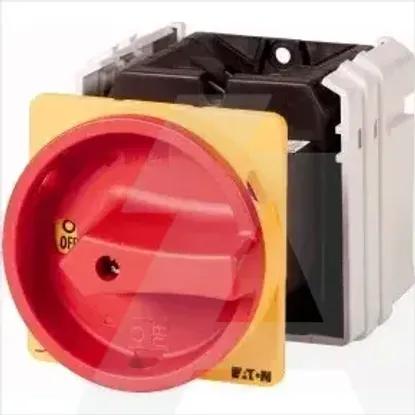

Main Product Image
