Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as maintenance-/service switchYes
Number of switches1
Number of auxiliary contacts as normally open contact2
Version as safety switchNo
Rated operation power at AC-3, 400 V22kW
Version as emergency stop installationNo
Rated operating voltage690 - 690V
Height88mm
InterlockableYes
Number of poles6
Number of auxiliary contacts as normally closed contact1
Motor drive integratedNo
Depth188mm
Number of auxiliary contacts as change-over contact0
Version as main switchYes
Conditioned rated short-circuit current Iq2kA
Rated permanent current Iu63A
Width88mm
Degree of protection (IP), front sideIP65
Type of control elementDoor coupling rotary drive
Type of electrical connection of main circuitScrew connection
Rated operation power at AC-23, 400 V30kW
Switching power at 400 V30kW
Voltage release optionalNo
Rated permanent current at AC-23, 400 V63A
Suitable for front mounting 4-holeNo
Colour control elementBlack
Suitable for floor mountingYes
With pre-assembled cablingNo
Max. rated operation voltage Ue AC690V
Version as reversing switchNo
Degree of protection (NEMA)12
Suitable for distribution board installationNo
Rated short-time withstand current lcw1.3kA
Motor drive optionalNo
Device constructionBuilt-in device fixed built-in technique
Suitable for front mounting centreNo
Suitable for intermediate mountingYes
Rated permanent current at AC-21, 400 V63A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

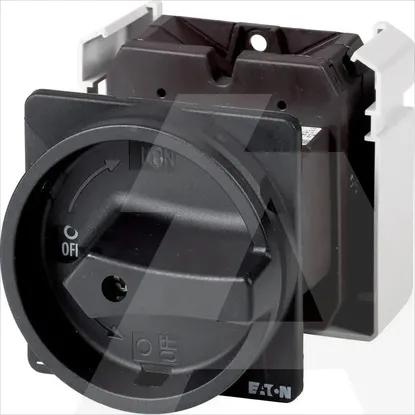

T5B-4-15164/V/SVB-SW
