Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Degree of protection (IP), front sideIP65
Number of poles4
Number of auxiliary contacts as normally open contact0
Depth120mm
Rated operating voltage690 - 690V
Width65mm
Height70mm
Conditioned rated short-circuit current Iq80kA
Rated permanent current Iu32A
Rated operation power at AC-3, 400 V13kW
Number of auxiliary contacts as normally closed contact0
Type of control elementDoor coupling rotary drive
Type of electrical connection of main circuitScrew connection
Device constructionBuilt-in device fixed built-in technique
Rated short-time withstand current lcw0.64kA
Colour control elementBlack
Switching power at 400 V15kW
Rated permanent current at AC-21, 400 V32A
Version as maintenance-/service switchYes
Version as main switchYes
Suitable for front mounting centreNo
Motor drive integratedNo
Rated operation power at AC-23, 400 V15kW
Motor drive optionalNo
Suitable for front mounting 4-holeYes
Suitable for distribution board installationNo
Voltage release optionalNo
Suitable for intermediate mountingNo
Version as reversing switchNo
Version as safety switchNo
Max. rated operation voltage Ue AC690V
Suitable for floor mountingNo
Number of auxiliary contacts as change-over contact0
Version as emergency stop installationNo
InterlockableYes
Number of switches1
Degree of protection (NEMA)12
Rated permanent current at AC-23, 400 V32A
With pre-assembled cablingNo
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

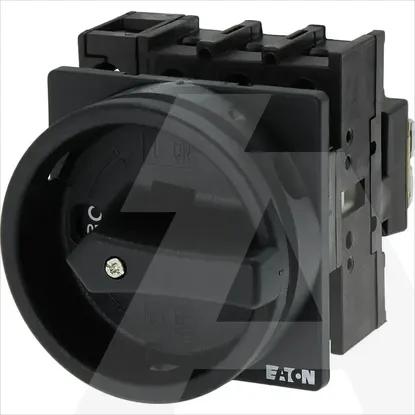

P1-32/EA/SVB-SW/N
