Details

  • •Low-voltage industrial components
  • •Switch disconnector
  • •1 KOM
  • •EATON

Technical specifications

Number of switches1
Version as main switchNo
Type of control elementToggle
Rated operation power at AC-23, 400 V30kW
Conditioned rated short-circuit current Iq2kA
Degree of protection (IP), front sideIP65
Rated short-time withstand current lcw1.3kA
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Version as safety switchNo
InterlockableNo
Version as emergency stop installationNo
Rated operating voltage690 - 690V
Rated permanent current Iu63A
Rated operation power at AC-3, 400 V22kW
Type of electrical connection of main circuitScrew connection
Motor drive integratedNo
Version as maintenance-/service switchNo
Number of auxiliary contacts as change-over contact0
Number of poles1
Suitable for front mounting centreNo
Colour control elementBlack
Suitable for front mounting 4-holeYes
Suitable for floor mountingNo
Suitable for distribution board installationNo
Suitable for intermediate mountingNo
Version as reversing switchNo
Motor drive optionalNo
Max. rated operation voltage Ue AC690V
Voltage release optionalNo
Device constructionBuilt-in device fixed built-in technique
Switching power at 400 V30kW
Rated permanent current at AC-23, 400 V63A
Rated permanent current at AC-21, 400 V63A
Degree of protection (NEMA)12
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

T5B-2-171/E

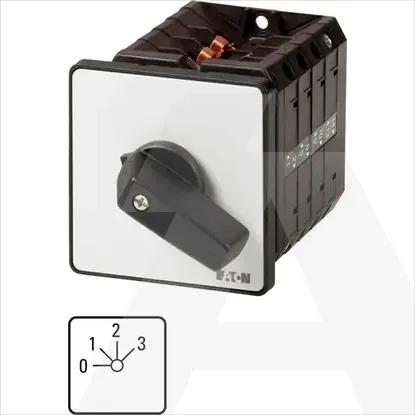

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Low-voltage industrial components
  • Switch disconnector
  • 1 KOM
  • EATON

Technical specifications

Number of switches

1

Version as main switch

Type of control element

Toggle

Rated operation power at AC-23, 400 V

30kW

Conditioned rated short-circuit current Iq

2kA

Degree of protection (IP), front side

IP65

Rated short-time withstand current lcw

1.3kA

Number of auxiliary contacts as normally open contact

0

Number of auxiliary contacts as normally closed contact

0

Version as safety switch

Interlockable

Version as emergency stop installation

Rated operating voltage

690 .. 690V

Rated permanent current Iu

63A

Rated operation power at AC-3, 400 V

22kW

Type of electrical connection of main circuit

Screw connection

Motor drive integrated

Version as maintenance-/service switch

Number of auxiliary contacts as change-over contact

0

Number of poles

1

Suitable for front mounting centre

Colour control element

Black

Suitable for front mounting 4-hole

Suitable for floor mounting

Suitable for distribution board installation

Suitable for intermediate mounting

Version as reversing switch

Motor drive optional

Max. rated operation voltage Ue AC

690V

Voltage release optional

Device construction

Built-in device fixed built-in technique

Switching power at 400 V

30kW

Rated permanent current at AC-23, 400 V

63A

Rated permanent current at AC-21, 400 V

63A

Degree of protection (NEMA)

12

VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
