Details
- •Low-voltage industrial components

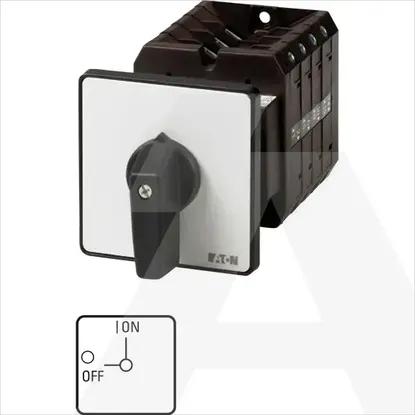

- •Switch disconnector
- •1 KOM
- •EATON
Technical specifications
Rated operation power at AC-3, 400 V22kW
Number of auxiliary contacts as normally open contact0
Motor drive integratedNo
Rated permanent current Iu63A
Number of poles1
Degree of protection (IP), front sideIP65
Type of control elementDoor coupling rotary drive
Rated short-time withstand current lcw1.3kA
Version as safety switchNo
Version as emergency stop installationNo
Rated operation power at AC-23, 400 V30kW
Suitable for front mounting centreNo
Version as maintenance-/service switchNo
Version as main switchNo
Number of auxiliary contacts as normally closed contact0
Type of electrical connection of main circuitScrew connection
InterlockableNo
Suitable for floor mountingYes
Number of auxiliary contacts as change-over contact0
Number of switches1
Suitable for front mounting 4-holeNo
Colour control elementBlack
Rated operating voltage690 - 690V
Conditioned rated short-circuit current Iq2kA
Suitable for distribution board installationNo
Suitable for intermediate mountingYes
Max. rated operation voltage Ue AC690V
Device constructionBuilt-in device fixed built-in technique
Motor drive optionalNo
Rated permanent current at AC-23, 400 V63A
Version as reversing switchNo
Switching power at 400 V30kW
Degree of protection (NEMA)12
Rated permanent current at AC-21, 400 V63A
Voltage release optionalNo
