Details
- •Low-voltage industrial components

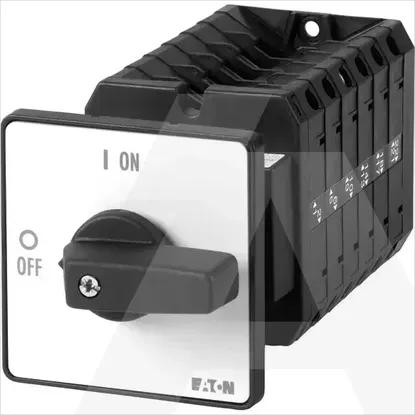

- •Switch disconnector
- •1 KOM
- •EATON
Technical specifications
Rated operation power at AC-3, 400 V30kW
Conditioned rated short-circuit current Iq2kA
Number of auxiliary contacts as change-over contact0
InterlockableNo
Rated operating voltage690 - 690V
Number of auxiliary contacts as normally open contact0
Rated permanent current Iu100A
Number of auxiliary contacts as normally closed contact0
Number of poles11
Degree of protection (IP), front sideIP65
Number of switches1
Motor drive integratedNo
Version as emergency stop installationNo
Type of control elementToggle
Type of electrical connection of main circuitScrew connection
Version as main switchNo
Max. rated operation voltage Ue AC690V
Version as maintenance-/service switchNo
Suitable for distribution board installationNo
Colour control elementBlack
Suitable for intermediate mountingYes
Rated operation power at AC-23, 400 V55kW
Suitable for front mounting centreNo
Motor drive optionalNo
Version as safety switchNo
Voltage release optionalNo
Suitable for front mounting 4-holeNo
Rated short-time withstand current lcw1.7kA
Rated permanent current at AC-21, 400 V100A
Version as reversing switchNo
Device constructionBuilt-in device fixed built-in technique
Rated permanent current at AC-23, 400 V100A
Suitable for floor mountingYes
Degree of protection (NEMA)Other
Switching power at 400 V55kW
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
T5-6-8347/Z
