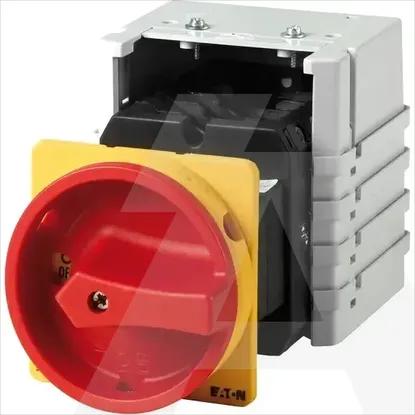

T5-5-8346/V/SVB
Code: 1041781
Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •EATON
Technical specifications
Number of poles10
Type of control elementDoor coupling rotary drive
Number of auxiliary contacts as normally open contact0
Rated permanent current Iu100A
Number of auxiliary contacts as normally closed contact0
Motor drive integratedNo
Type of electrical connection of main circuitScrew connection
Motor drive optionalNo
Device constructionBuilt-in device fixed built-in technique
Number of auxiliary contacts as change-over contact0
Rated operation power at AC-3, 400 V30kW
Degree of protection (NEMA)Other
Degree of protection (IP), front sideIP65
Suitable for floor mountingYes
Suitable for intermediate mountingYes
Suitable for distribution board installationNo
Max. rated operation voltage Ue AC690V
Conditioned rated short-circuit current Iq2kA
Rated operating voltage690 - 690V
Rated short-time withstand current lcw1.7kA
Suitable for front mounting 4-holeNo
Version as reversing switchNo
Rated permanent current at AC-21, 400 V100A
InterlockableYes
Voltage release optionalNo
Version as maintenance-/service switchYes
Rated permanent current at AC-23, 400 V100A
Rated operation power at AC-23, 400 V55kW
Suitable for front mounting centreNo
Colour control elementRed
Version as emergency stop installationYes
Version as safety switchNo
Switching power at 400 V55kW
Number of switches1
Version as main switchYes
