Aleta.hr

Details

  • •Low-voltage industrial components
  • •Switch disconnector (low voltage)
  • •1 KOM
  • •EATON

Technical specifications

Max. rated operation voltage Ue AC690V
Rated permanent current at AC-23, 400 V100A
Version as main switchYes
Version as safety switchNo
Version as emergency stop installationYes
Version as reversing switchNo
Number of switches1
Version as maintenance-/service switchYes
Rated operating voltage690 - 690V
Rated short-time withstand current lcw1.7kA
Rated permanent current Iu100A
Rated permanent current at AC-21, 400 V100A
Rated operation power at AC-23, 400 V55kW
Switching power at 400 V55kW
Number of poles9
Rated operation power at AC-3, 400 V30kW
Conditioned rated short-circuit current Iq2kA
Voltage release optionalNo
Motor drive optionalNo
Number of auxiliary contacts as change-over contact0
Suitable for front mounting 4-holeNo
Suitable for distribution board installationNo
Type of control elementDoor coupling rotary drive
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Height88mm
Degree of protection (IP), front sideIP65
Suitable for intermediate mountingYes
InterlockableYes
Degree of protection (NEMA)12
Colour control elementRed
Type of electrical connection of main circuitScrew connection
Depth204mm
With pre-assembled cablingNo
Device constructionBuilt-in device fixed built-in technique
Suitable for front mounting centreNo
Motor drive integratedNo
Width88mm
Suitable for floor mountingYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

T5-5-8345/V/SVB

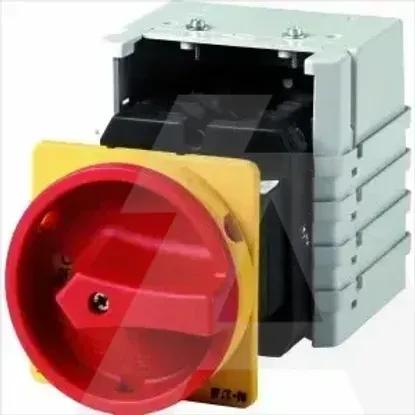

Main Product Image
