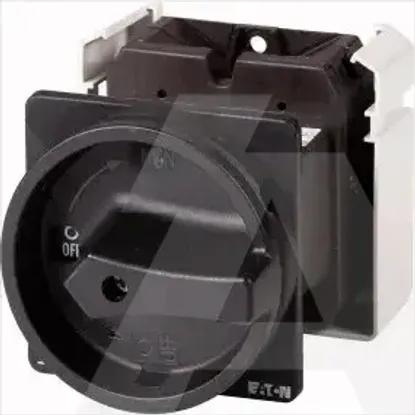

T5-4-15164/V/SVB-SW
Code: 1042071
ManufacturerEaton
Catalog number096124
TypeT5-4-15164/V/SVB-SW
CategorySwitch disconnector
EAN code4015080961246
Details
- •Main switch, 100A
- •Low-voltage industrial components
- •Switch disconnector
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Rated operation power at AC-3, 400 V30kW
Conditioned rated short-circuit current Iq2kA
Type of electrical connection of main circuitScrew connection
Number of switches1
Degree of protection (IP), front sideIP65
Motor drive integratedNo
Number of auxiliary contacts as normally open contact2
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally closed contact0
InterlockableYes
Rated operating voltage690 - 690V
Version as emergency stop installationNo
Version as main switchYes
Version as maintenance-/service switchYes
Version as safety switchNo
Type of control elementDoor coupling rotary drive
Suitable for intermediate mountingYes
Rated permanent current at AC-23, 400 V100A
Switching power at 400 V55kW
Motor drive optionalNo
Voltage release optionalNo
Suitable for floor mountingYes
Rated permanent current at AC-21, 400 V100A
Suitable for front mounting centreNo
Device constructionBuilt-in device fixed built-in technique
Degree of protection (NEMA)Other
Rated short-time withstand current lcw1.7kA
Version as reversing switchNo
Rated operation power at AC-23, 400 V55kW
Suitable for distribution board installationNo
Colour control elementBlack
Suitable for front mounting 4-holeNo
Rated permanent current Iu100A
Number of poles6
Max. rated operation voltage Ue AC690V
