Details

  • •Low-voltage industrial components
  • •Switch disconnector
  • •1 KOM
  • •EATON

Technical specifications

Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V30kW
Number of auxiliary contacts as normally open contact0
Rated permanent current Iu100A
Number of poles6
Version as maintenance-/service switchNo
Degree of protection (IP), front sideIP65
Rated short-time withstand current lcw1.7kA
InterlockableNo
Suitable for front mounting centreNo
Number of switches1
Motor drive integratedNo
Version as main switchNo
Suitable for floor mountingNo
Suitable for intermediate mountingNo
Version as safety switchNo
Version as emergency stop installationNo
Type of control elementToggle
Type of electrical connection of main circuitScrew connection
Colour control elementBlack
Suitable for distribution board installationNo
Conditioned rated short-circuit current Iq2kA
Max. rated operation voltage Ue AC690V
Number of auxiliary contacts as change-over contact0
Rated operation power at AC-23, 400 V55kW
Suitable for front mounting 4-holeNo
Rated operating voltage690 - 690V
Motor drive optionalNo
Device constructionBuilt-in device fixed built-in technique
Voltage release optionalNo
Switching power at 400 V55kW
Version as reversing switchNo
Rated permanent current at AC-21, 400 V100A
Rated permanent current at AC-23, 400 V100A
Degree of protection (NEMA)Other
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

T5-3-8342/X

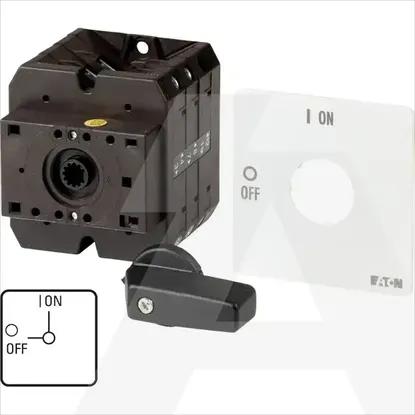

Main Product Image
