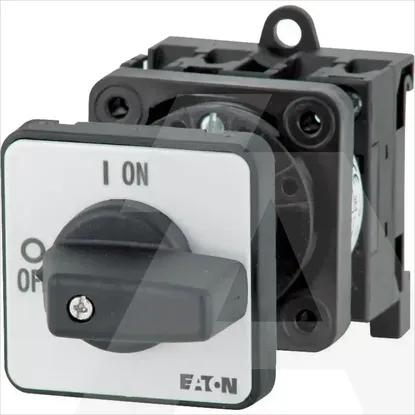

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Depth130mm
Rated operation power at AC-3, 400 V13kW
Height70mm
Number of auxiliary contacts as normally open contact0
Width49mm
Version as maintenance-/service switchNo
Rated operating voltage690 - 690V
Rated permanent current Iu32A
Motor drive integratedNo
Number of auxiliary contacts as normally closed contact0
InterlockableNo
Number of auxiliary contacts as change-over contact0
Type of electrical connection of main circuitScrew connection
Version as main switchNo
Number of switches1
Degree of protection (IP), front sideIP65
Version as emergency stop installationNo
Rated operation power at AC-23, 400 V15kW
Conditioned rated short-circuit current Iq80kA
Version as safety switchNo
Type of control elementShort thumb-grip
Max. rated operation voltage Ue AC690V
Suitable for front mounting centreNo
Colour control elementBlack
Rated short-time withstand current lcw0.64kA
Suitable for intermediate mountingYes
Suitable for front mounting 4-holeNo
Suitable for distribution board installationNo
Suitable for floor mountingNo
Number of poles3
With pre-assembled cablingNo
Voltage release optionalNo
Device constructionBuilt-in device fixed built-in technique
Motor drive optionalNo
Switching power at 400 V15kW
Degree of protection (NEMA)12
Rated permanent current at AC-21, 400 V32A
Rated permanent current at AC-23, 400 V32A
Version as reversing switchNo
