Details

  • •Low-voltage industrial components
  • •Switch disconnector (low voltage)
  • •1 KOM
  • •EATON

Technical specifications

Rated operation power at AC-3, 400 V5.5kW
Rated permanent current Iu20A
Height48mm
Number of auxiliary contacts as normally closed contact0
Depth166mm
Motor drive integratedNo
Type of electrical connection of main circuitScrew connection
Number of poles12
Number of auxiliary contacts as change-over contact0
Number of switches1
Number of auxiliary contacts as normally open contact0
InterlockableNo
Rated operating voltage690 - 690V
Width48mm
Conditioned rated short-circuit current Iq6kA
Degree of protection (IP), front sideIP65
Version as emergency stop installationNo
Suitable for front mounting centreNo
Device constructionBuilt-in device fixed built-in technique
Motor drive optionalNo
Rated short-time withstand current lcw0.32kA
Voltage release optionalNo
Max. rated operation voltage Ue AC690V
Version as main switchNo
Version as safety switchNo
Type of control elementDoor coupling rotary drive
Suitable for distribution board installationNo
Suitable for floor mountingYes
Version as maintenance-/service switchNo
Suitable for front mounting 4-holeNo
Suitable for intermediate mountingYes
Colour control elementBlack
Rated operation power at AC-23, 400 V5.5kW
Rated permanent current at AC-21, 400 V20A
Switching power at 400 V5.5kW
Degree of protection (NEMA)12
Rated permanent current at AC-23, 400 V13.3A
Version as reversing switchNo
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

T0-6-8348/Z

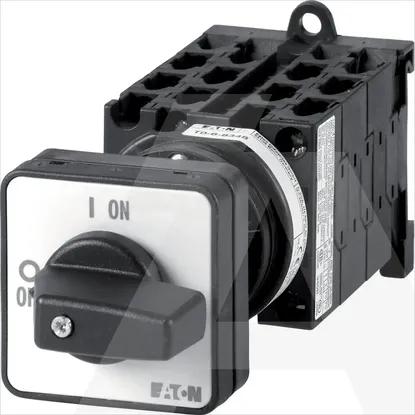

Main Product Image
