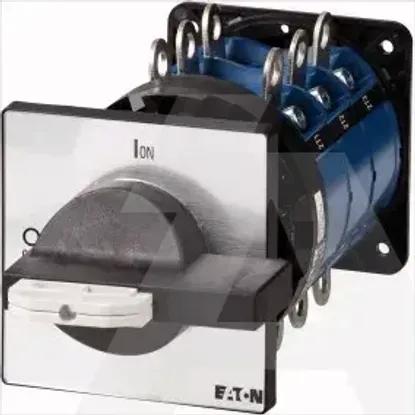

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Height160mm
Width130mm
Depth310mm
Number of auxiliary contacts as normally closed contact1
Rated operating voltage690 - 690V
Number of auxiliary contacts as change-over contact0
Number of switches1
Rated operation power at AC-3, 400 V55kW
Number of poles6
InterlockableYes
Rated permanent current Iu315A
Degree of protection (IP), front sideIP65
Conditioned rated short-circuit current Iq5kA
Motor drive integratedNo
Number of auxiliary contacts as normally open contact1
Version as main switchYes
Version as emergency stop installationNo
Type of electrical connection of main circuitScrew connection
Type of control elementDoor coupling rotary drive
Rated operation power at AC-23, 400 V132kW
Version as maintenance-/service switchYes
Version as safety switchNo
Colour control elementBlack
Device constructionBuilt-in device fixed built-in technique
Version as reversing switchNo
Rated short-time withstand current lcw4.2kA
Rated permanent current at AC-21, 400 V315A
Switching power at 400 V132kW
Suitable for floor mountingYes
Suitable for intermediate mountingYes
Rated permanent current at AC-23, 400 V245A
With pre-assembled cablingNo
Suitable for distribution board installationNo
Voltage release optionalNo
Motor drive optionalNo
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Degree of protection (NEMA)12
Max. rated operation voltage Ue AC690V
