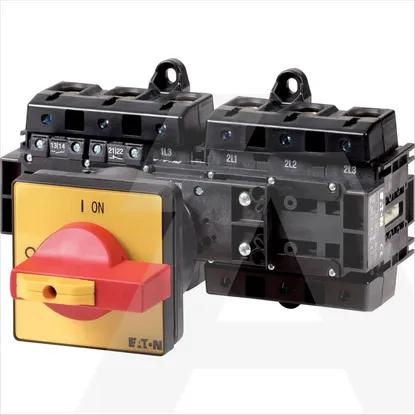

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Height140mm
Depth200mm
Rated operating voltage690 - 690V
Number of auxiliary contacts as normally closed contact1
Number of auxiliary contacts as normally open contact1
Number of poles6
Width225mm
Rated permanent current Iu160A
Type of electrical connection of main circuitScrew connection
Number of switches1
Conditioned rated short-circuit current Iq30kA
InterlockableYes
Degree of protection (IP), front sideIP65
Motor drive integratedNo
Version as emergency stop installationNo
Rated operation power at AC-3, 400 V45kW
Number of auxiliary contacts as change-over contact0
Version as main switchYes
Version as safety switchNo
Version as maintenance-/service switchYes
Type of control elementDoor coupling rotary drive
Rated short-time withstand current lcw3kA
Suitable for floor mountingYes
Colour control elementRed
Rated operation power at AC-23, 400 V55kW
Suitable for front mounting centreNo
Rated permanent current at AC-21, 400 V160A
Max. rated operation voltage Ue AC690V
Device constructionBuilt-in device fixed built-in technique
Voltage release optionalNo
Suitable for front mounting 4-holeNo
Suitable for intermediate mountingYes
Motor drive optionalNo
Suitable for distribution board installationNo
Switching power at 400 V55kW
Degree of protection (NEMA)12
Rated permanent current at AC-23, 400 V105A
Version as reversing switchNo
With pre-assembled cablingNo
