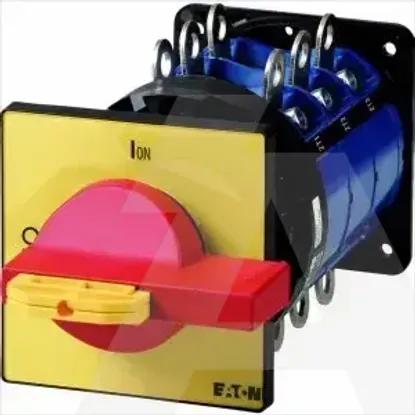

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Height160mm
Number of auxiliary contacts as normally closed contact1
Number of switches1
Degree of protection (IP), front sideIP65
Number of auxiliary contacts as change-over contact0
Rated permanent current Iu315A
Number of auxiliary contacts as normally open contact1
InterlockableYes
Depth310mm
Width130mm
Conditioned rated short-circuit current Iq5kA
Number of poles6
Rated operating voltage1000 - 1000V
Rated operation power at AC-3, 400 V55kW
Type of electrical connection of main circuitScrew connection
Version as maintenance-/service switchYes
Rated operation power at AC-23, 400 V132kW
Type of control elementDoor coupling rotary drive
Motor drive integratedNo
Version as emergency stop installationYes
Colour control elementRed
Version as main switchYes
Version as safety switchNo
Rated short-time withstand current lcw4.2kA
Device constructionBuilt-in device fixed built-in technique
Voltage release optionalNo
Rated permanent current at AC-21, 400 V315A
Suitable for floor mountingYes
Suitable for front mounting 4-holeNo
Suitable for intermediate mountingYes
Suitable for distribution board installationNo
Switching power at 400 V132kW
Max. rated operation voltage Ue AC690V
Suitable for front mounting centreNo
Rated permanent current at AC-23, 400 V245A
With pre-assembled cablingNo
Motor drive optionalNo
Degree of protection (NEMA)12
Version as reversing switchNo
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
T8-3-8342/V/SVB/HI11
