Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Height285mm
Type of control elementDoor coupling rotary drive
Depth500mm
Number of auxiliary contacts as normally closed contact1
Width375mm
Rated permanent current Iu160A
Degree of protection (IP), front sideIP65
Type of electrical connection of main circuitScrew connection
Number of poles6
Version as main switchYes
Number of auxiliary contacts as change-over contact0
Rated operating voltage690 - 690V
Conditioned rated short-circuit current Iq5kA
Number of switches1
InterlockableYes
Motor drive integratedNo
Number of auxiliary contacts as normally open contact1
Version as emergency stop installationNo
Rated operation power at AC-3, 400 V45kW
Colour control elementRed
Suitable for front mounting 4-holeNo
Rated operation power at AC-23, 400 V55kW
Rated short-time withstand current lcw3kA
Version as safety switchNo
Suitable for floor mountingYes
Version as maintenance-/service switchYes
Suitable for distribution board installationNo
Motor drive optionalNo
Max. rated operation voltage Ue AC690V
Suitable for intermediate mountingNo
Suitable for front mounting centreNo
Rated permanent current at AC-21, 400 V160A
Degree of protection (NEMA)12
Voltage release optionalNo
Rated permanent current at AC-23, 400 V105A
Device constructionComplete device in housing
Switching power at 400 V55kW
Version as reversing switchNo
With pre-assembled cablingNo
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

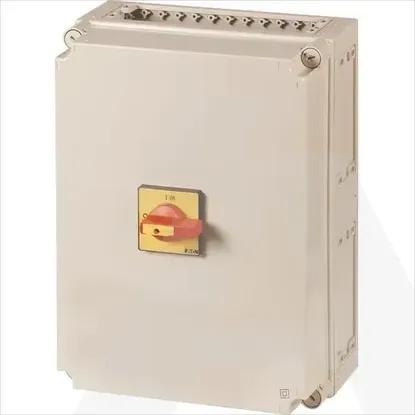

T6-160-6/I45/SVB/HI11
