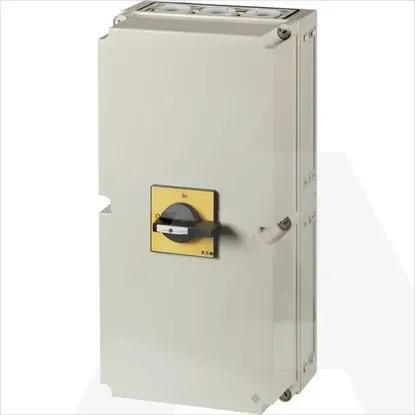

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Width375mm
Rated operation power at AC-3, 400 V55kW
Depth750mm
Height345mm
Number of auxiliary contacts as normally open contact1
Number of auxiliary contacts as normally closed contact1
Rated permanent current Iu315A
Number of poles6
Rated operating voltage690 - 690V
Degree of protection (IP), front sideIP64
Number of auxiliary contacts as change-over contact0
Suitable for floor mountingYes
Conditioned rated short-circuit current Iq5kA
Version as maintenance-/service switchYes
InterlockableYes
Version as main switchYes
Rated operation power at AC-23, 400 V132kW
Version as emergency stop installationNo
Suitable for intermediate mountingNo
Suitable for front mounting 4-holeNo
Type of control elementDoor coupling rotary drive
Version as safety switchNo
Motor drive integratedNo
Colour control elementBlack
Number of switches1
Suitable for distribution board installationNo
Suitable for front mounting centreNo
Type of electrical connection of main circuitScrew connection
Max. rated operation voltage Ue AC690V
Voltage release optionalNo
Device constructionComplete device in housing
Motor drive optionalNo
Rated short-time withstand current lcw4.2kA
Degree of protection (NEMA)12
Version as reversing switchNo
With pre-assembled cablingNo
Rated permanent current at AC-21, 400 V315A
Rated permanent current at AC-23, 400 V245A
Switching power at 400 V132kW
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
T8-3-8342/I48/SVB-SW/HI11
