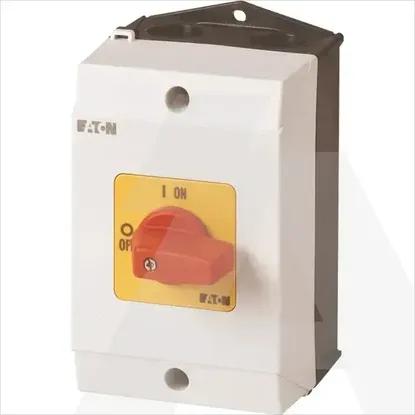

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Width80mm
Rated operation power at AC-3, 400 V5.5kW
Height102mm
Number of auxiliary contacts as normally open contact0
Depth137mm
Number of auxiliary contacts as normally closed contact0
Number of poles2
Type of electrical connection of main circuitScrew connection
Number of auxiliary contacts as change-over contact0
Rated operating voltage690 - 690V
Degree of protection (IP), front sideIP65
Type of control elementShort thumb-grip
Number of switches1
Conditioned rated short-circuit current Iq6kA
Motor drive integratedNo
Rated permanent current Iu20A
InterlockableNo
Version as emergency stop installationYes
Colour control elementRed
Suitable for distribution board installationNo
Version as main switchNo
Rated short-time withstand current lcw0.32kA
Suitable for intermediate mountingNo
Version as safety switchNo
Suitable for front mounting 4-holeNo
Version as maintenance-/service switchNo
Max. rated operation voltage Ue AC690V
Suitable for front mounting centreNo
Rated operation power at AC-23, 400 V5.5kW
Suitable for floor mountingYes
Motor drive optionalNo
Degree of protection (NEMA)12
Voltage release optionalNo
With pre-assembled cablingNo
Switching power at 400 V5.5kW
Device constructionComplete device in housing
Rated permanent current at AC-23, 400 V13.3A
Rated permanent current at AC-21, 400 V20A
Version as reversing switchNo
