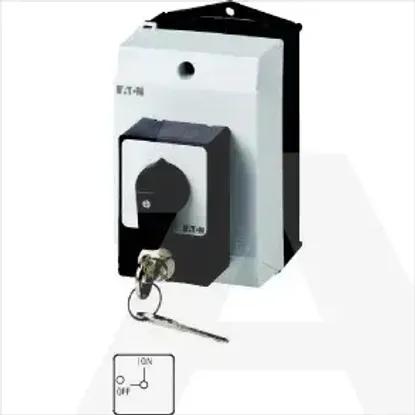

T0-2-1/I1/SVA(A)
Code: 1043026
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as emergency stop installationNo
Max. rated operation voltage Ue AC690V
Version as safety switchNo
Rated permanent current Iu20A
Version as main switchNo
Rated permanent current at AC-23, 400 V13.3A
Number of switches1
Version as maintenance-/service switchNo
Version as reversing switchNo
Rated operation power at AC-3, 400 V5.5kW
Rated operating voltage690 - 690V
Rated permanent current at AC-21, 400 V20A
Switching power at 400 V5.5kW
Rated operation power at AC-23, 400 V5.5kW
Rated short-time withstand current lcw0.32kA
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Motor drive optionalNo
Voltage release optionalNo
Suitable for front mounting 4-holeNo
Suitable for intermediate mountingNo
Number of poles3
Motor drive integratedNo
Suitable for distribution board installationNo
Suitable for front mounting centreNo
Colour control elementBlack
Number of auxiliary contacts as change-over contact0
Suitable for floor mountingYes
Device constructionComplete device in housing
Type of control elementShort thumb-grip
Conditioned rated short-circuit current Iq6kA
InterlockableYes
With pre-assembled cablingNo
Degree of protection (NEMA)12
Degree of protection (IP), front sideIP65
Width80mm
Type of electrical connection of main circuitScrew connection
Height102mm
Depth137mm
