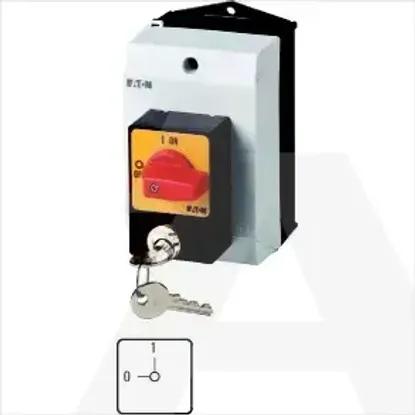

T0-2-1/I1/SVA(S)-RT
Code: 1043028
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as main switchNo
Rated permanent current at AC-21, 400 V20A
Rated short-time withstand current lcw0.32kA
Version as maintenance-/service switchNo
Version as emergency stop installationYes
Number of auxiliary contacts as normally closed contact0
Rated operating voltage690 - 690V
Version as safety switchNo
Max. rated operation voltage Ue AC690V
Version as reversing switchNo
Number of switches1
Rated permanent current at AC-23, 400 V13.3A
Number of poles3
Rated permanent current Iu20A
Motor drive optionalNo
Rated operation power at AC-3, 400 V5.5kW
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Switching power at 400 V5.5kW
Motor drive integratedNo
Voltage release optionalNo
Conditioned rated short-circuit current Iq6kA
Rated operation power at AC-23, 400 V5.5kW
Device constructionComplete device in housing
Suitable for floor mountingYes
Suitable for front mounting centreNo
Suitable for front mounting 4-holeNo
Suitable for distribution board installationNo
Colour control elementRed
Suitable for intermediate mountingNo
InterlockableYes
Type of control elementShort thumb-grip
Degree of protection (IP), front sideIP65
With pre-assembled cablingNo
Degree of protection (NEMA)12
Type of electrical connection of main circuitScrew connection
Height102mm
Width80mm
Depth137mm
