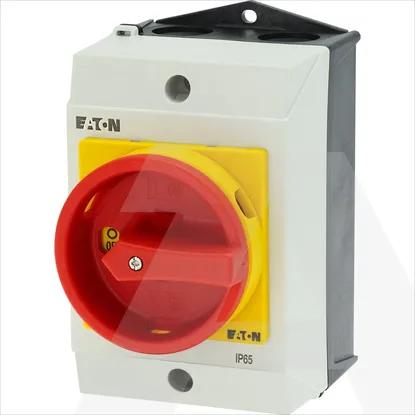

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally closed contact0
Depth137mm
Conditioned rated short-circuit current Iq6kA
Degree of protection (IP), front sideIP65
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Rated operating voltage690 - 690V
Height110mm
Number of poles2
Rated operation power at AC-3, 400 V5.5kW
Rated permanent current Iu20A
Width80mm
InterlockableYes
Number of switches1
Type of control elementDoor coupling rotary drive
Version as main switchYes
Rated operation power at AC-23, 400 V5.5kW
Version as emergency stop installationYes
Version as maintenance-/service switchYes
Type of electrical connection of main circuitScrew connection
Motor drive integratedNo
Version as safety switchNo
Rated short-time withstand current lcw0.32kA
Suitable for floor mountingYes
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Suitable for intermediate mountingNo
Rated permanent current at AC-21, 400 V20A
Voltage release optionalNo
Device constructionComplete device in housing
Max. rated operation voltage Ue AC690V
Motor drive optionalNo
Switching power at 400 V5.5kW
Colour control elementRed
Version as reversing switchNo
Suitable for distribution board installationNo
Degree of protection (NEMA)12
Rated permanent current at AC-23, 400 V13.3A
With pre-assembled cablingNo
