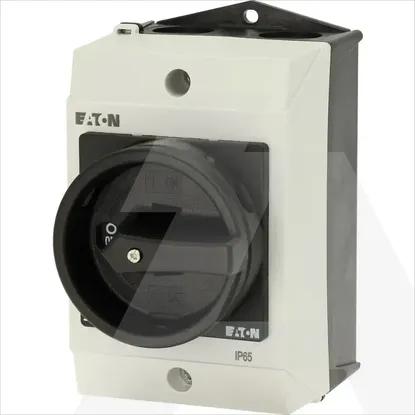

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Width80mm
Number of auxiliary contacts as normally open contact0
Height110mm
Depth137mm
Rated operation power at AC-3, 400 V5.5kW
Number of auxiliary contacts as normally closed contact0
Conditioned rated short-circuit current Iq6kA
Number of poles2
Degree of protection (IP), front sideIP65
Number of switches1
Rated operating voltage690 - 690V
Number of auxiliary contacts as change-over contact0
Type of electrical connection of main circuitScrew connection
Version as main switchYes
InterlockableYes
Version as safety switchNo
Type of control elementDoor coupling rotary drive
Version as emergency stop installationNo
Version as maintenance-/service switchYes
Motor drive integratedNo
Rated operation power at AC-23, 400 V5.5kW
Motor drive optionalNo
Rated short-time withstand current lcw0.32kA
Suitable for front mounting 4-holeNo
Colour control elementBlack
Rated permanent current Iu20A
Suitable for distribution board installationNo
Suitable for floor mountingYes
Suitable for intermediate mountingNo
Max. rated operation voltage Ue AC690V
Suitable for front mounting centreNo
Rated permanent current at AC-23, 400 V13.3A
Rated permanent current at AC-21, 400 V20A
Voltage release optionalNo
Version as reversing switchNo
With pre-assembled cablingNo
Switching power at 400 V5.5kW
Degree of protection (NEMA)12
Device constructionComplete device in housing
