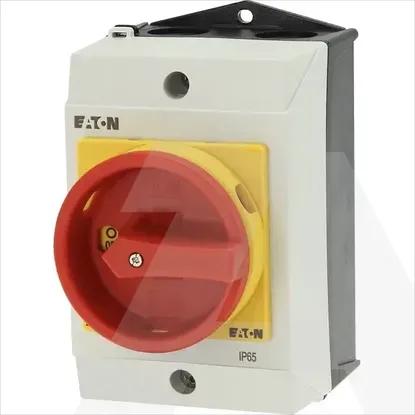

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Degree of protection (IP), front sideIP65
Rated permanent current Iu20A
Depth137mm
Width80mm
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V5.5kW
Height110mm
Number of poles1
Rated operating voltage690 - 690V
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally closed contact0
Conditioned rated short-circuit current Iq6kA
Motor drive integratedNo
Number of switches1
InterlockableYes
Type of control elementDoor coupling rotary drive
Version as main switchYes
Version as emergency stop installationYes
Type of electrical connection of main circuitScrew connection
Suitable for front mounting centreNo
Rated short-time withstand current lcw0.32kA
Suitable for intermediate mountingNo
Max. rated operation voltage Ue AC690V
Suitable for floor mountingYes
Motor drive optionalNo
Version as safety switchNo
Voltage release optionalNo
Suitable for distribution board installationNo
Version as maintenance-/service switchYes
Rated operation power at AC-23, 400 V5.5kW
Colour control elementRed
Suitable for front mounting 4-holeNo
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V13.3A
Version as reversing switchNo
Degree of protection (NEMA)12
Switching power at 400 V5.5kW
Rated permanent current at AC-21, 400 V20A
Device constructionComplete device in housing
