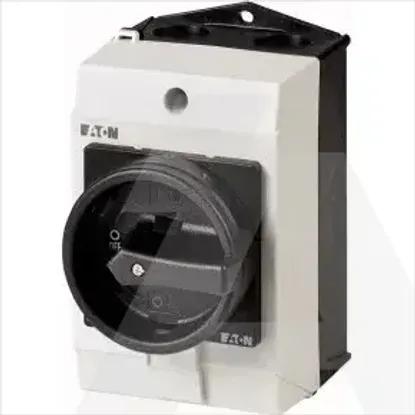

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Depth137mm
Rated operation power at AC-3, 400 V5.5kW
Width80mm
Height110mm
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Number of poles1
Rated permanent current Iu20A
Conditioned rated short-circuit current Iq6kA
Degree of protection (IP), front sideIP65
Rated operation power at AC-23, 400 V5.5kW
Number of auxiliary contacts as change-over contact0
Rated operating voltage690 - 690V
Type of control elementDoor coupling rotary drive
Rated short-time withstand current lcw0.32kA
InterlockableYes
Version as emergency stop installationNo
Suitable for floor mountingYes
Version as main switchYes
Number of switches1
Colour control elementBlack
Version as maintenance-/service switchYes
Motor drive integratedNo
Version as safety switchNo
Suitable for front mounting centreNo
Motor drive optionalNo
Device constructionComplete device in housing
Suitable for front mounting 4-holeNo
Max. rated operation voltage Ue AC690V
Suitable for intermediate mountingNo
Suitable for distribution board installationNo
Type of electrical connection of main circuitScrew connection
Voltage release optionalNo
Rated permanent current at AC-21, 400 V20A
Degree of protection (NEMA)12
With pre-assembled cablingNo
Switching power at 400 V5.5kW
Rated permanent current at AC-23, 400 V13.3A
Version as reversing switchNo
