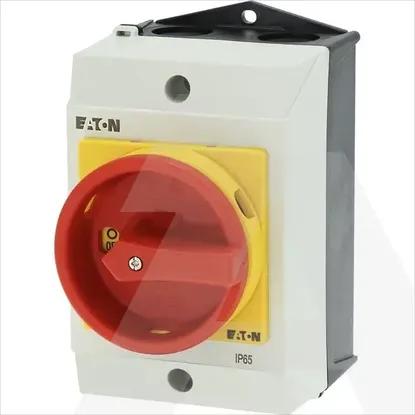

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Width80mm
Number of auxiliary contacts as normally open contact1
Depth137mm
Number of auxiliary contacts as normally closed contact1
Height130mm
Rated permanent current Iu20A
Rated operation power at AC-3, 400 V5.5kW
InterlockableYes
Number of poles4
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP65
Number of switches1
Conditioned rated short-circuit current Iq6kA
Rated operating voltage690 - 690V
Version as main switchYes
Version as safety switchNo
Version as maintenance-/service switchYes
Voltage release optionalNo
Type of electrical connection of main circuitScrew connection
Suitable for front mounting 4-holeNo
Suitable for floor mountingYes
Suitable for intermediate mountingNo
Motor drive integratedNo
Suitable for front mounting centreNo
Type of control elementDoor coupling rotary drive
Motor drive optionalNo
Rated operation power at AC-23, 400 V5.5kW
Version as emergency stop installationYes
Suitable for distribution board installationNo
Max. rated operation voltage Ue AC690V
Colour control elementRed
Rated short-time withstand current lcw0.32kA
With pre-assembled cablingNo
Switching power at 400 V5.5kW
Rated permanent current at AC-21, 400 V20A
Device constructionComplete device in housing
Rated permanent current at AC-23, 400 V13.3A
Version as reversing switchNo
Degree of protection (NEMA)12
