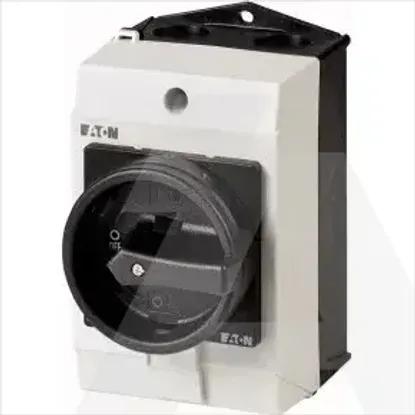

Main Product Image

T0-3-15681/I1/SVB-SW

Code: 1043097

ManufacturerEaton
Catalog number207156
TypeT0-3-15681/I1/SVB-SW
CategorySwitch disconnector
EAN code4015082071561

Details

  • •Low-voltage industrial components
  • •Switch disconnector
  • •1 KOM
  • •EATON

Technical specifications

Number of auxiliary contacts as normally open contact1
Rated operation power at AC-3, 400 V5.5kW
Degree of protection (IP), front sideIP65
InterlockableYes
Number of auxiliary contacts as change-over contact0
Conditioned rated short-circuit current Iq6kA
Number of auxiliary contacts as normally closed contact1
Number of switches1
Rated operating voltage690 - 690V
Version as safety switchNo
Suitable for front mounting 4-holeNo
Version as main switchYes
Type of electrical connection of main circuitScrew connection
Type of control elementDoor coupling rotary drive
Version as emergency stop installationNo
Rated short-time withstand current lcw0.32kA
Colour control elementBlack
Suitable for floor mountingYes
Rated operation power at AC-23, 400 V5.5kW
Motor drive integratedNo
Version as maintenance-/service switchYes
Suitable for front mounting centreNo
Suitable for intermediate mountingNo
Motor drive optionalNo
Voltage release optionalNo
Switching power at 400 V5.5kW
Rated permanent current at AC-23, 400 V13.3A
Degree of protection (NEMA)Other
Suitable for distribution board installationNo
Device constructionComplete device in housing
Version as reversing switchNo
Rated permanent current at AC-21, 400 V20A
Rated permanent current Iu20A
Number of poles4
Max. rated operation voltage Ue AC690V
