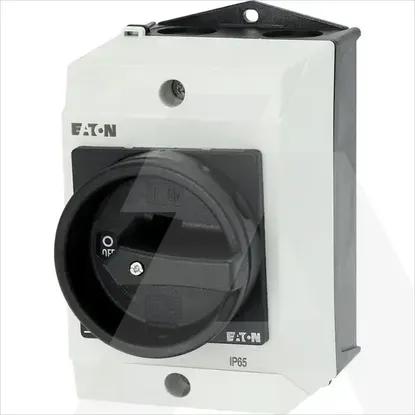

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Rated operation power at AC-3, 400 V5.5kW
Height130mm
Number of auxiliary contacts as normally closed contact1
Depth137mm
Rated permanent current Iu20A
Width80mm
Number of auxiliary contacts as normally open contact2
Type of electrical connection of main circuitScrew connection
InterlockableYes
Conditioned rated short-circuit current Iq6kA
Type of control elementDoor coupling rotary drive
Version as safety switchNo
Rated operation power at AC-23, 400 V5.5kW
Degree of protection (IP), front sideIP65
Version as main switchYes
Number of auxiliary contacts as change-over contact0
Version as maintenance-/service switchYes
Number of switches1
Version as emergency stop installationNo
Motor drive integratedNo
Rated operating voltage690 - 690V
Number of poles3
Voltage release optionalNo
Max. rated operation voltage Ue AC690V
Suitable for distribution board installationNo
Suitable for front mounting 4-holeNo
Suitable for floor mountingYes
Switching power at 400 V5.5kW
Suitable for intermediate mountingNo
Suitable for front mounting centreNo
Rated permanent current at AC-23, 400 V13.3A
Motor drive optionalNo
Device constructionComplete device in housing
Rated short-time withstand current lcw0.32kA
Version as reversing switchNo
Colour control elementBlack
Rated permanent current at AC-21, 400 V20A
With pre-assembled cablingNo
Degree of protection (NEMA)12
