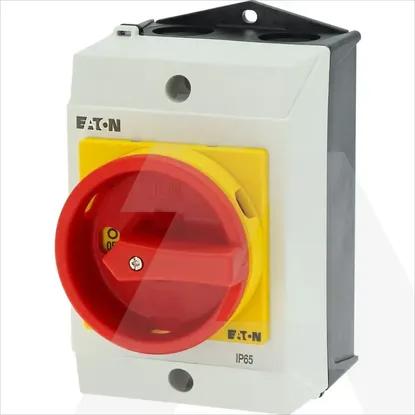

T0-3-8342/I1/SVB
Code: 1043100
ManufacturerEaton
Catalog number207159
TypeT0-3-8342/I1/SVB
CategorySwitch disconnector
EAN code4015082071592
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Rated operation power at AC-3, 400 V5.5kW
Height130mm
Number of auxiliary contacts as normally open contact0
Depth137mm
Number of auxiliary contacts as normally closed contact0
Width80mm
Rated operating voltage690 - 690V
Type of control elementDoor coupling rotary drive
Conditioned rated short-circuit current Iq6kA
Type of electrical connection of main circuitScrew connection
InterlockableYes
Motor drive integratedNo
Version as emergency stop installationYes
Number of switches1
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP65
Voltage release optionalNo
Suitable for floor mountingYes
Suitable for front mounting centreNo
Motor drive optionalNo
Version as maintenance-/service switchYes
Suitable for distribution board installationNo
Colour control elementRed
Device constructionComplete device in housing
Rated short-time withstand current lcw0.32kA
Version as main switchYes
Suitable for front mounting 4-holeNo
Suitable for intermediate mountingNo
Rated operation power at AC-23, 400 V5.5kW
Version as safety switchNo
Version as reversing switchNo
Rated permanent current at AC-21, 400 V20A
Switching power at 400 V5.5kW
Rated permanent current at AC-23, 400 V13.3A
Degree of protection (NEMA)12
With pre-assembled cablingNo
Rated permanent current Iu20A
Number of poles6
Max. rated operation voltage Ue AC690V
