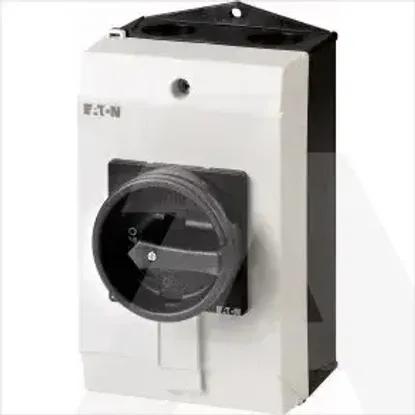

T3-1-102/I2/SVB-SW
Code: 1043140
ManufacturerEaton
Catalog number207199
TypeT3-1-102/I2/SVB-SW
CategorySwitch disconnector
EAN code4015082071998
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Width100mm
Height115mm
Number of auxiliary contacts as change-over contact0
Rated operating voltage690 - 690V
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V11kW
Conditioned rated short-circuit current Iq1kA
Depth181mm
Version as emergency stop installationNo
Suitable for front mounting centreNo
Suitable for front mounting 4-holeNo
Type of control elementDoor coupling rotary drive
Rated operation power at AC-23, 400 V15kW
Number of switches1
Version as main switchYes
Version as safety switchNo
Suitable for floor mountingYes
Version as maintenance-/service switchYes
InterlockableYes
Motor drive integratedNo
Degree of protection (IP), front sideIP65
Colour control elementBlack
Rated short-time withstand current lcw0.65kA
Type of electrical connection of main circuitScrew connection
Version as reversing switchNo
Voltage release optionalNo
Rated permanent current at AC-21, 400 V32A
Switching power at 400 V15kW
Device constructionComplete device in housing
Motor drive optionalNo
Suitable for distribution board installationNo
Suitable for intermediate mountingNo
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V32A
Degree of protection (NEMA)12
Rated permanent current Iu32A
Number of poles2
Max. rated operation voltage Ue AC690V
