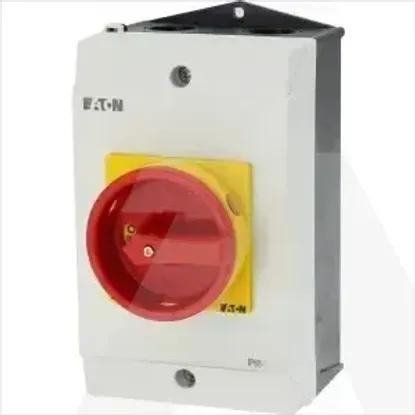

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally open contact1
Width186mm
Type of control elementDoor coupling rotary drive
InterlockableYes
Rated operating voltage500 - 500V
Conditioned rated short-circuit current Iq1kA
Depth207mm
Type of electrical connection of main circuitScrew connection
Height135mm
Number of auxiliary contacts as change-over contact0
Number of poles4
Rated operation power at AC-3, 400 V11kW
Number of auxiliary contacts as normally closed contact1
Motor drive integratedNo
Rated permanent current Iu32A
Version as emergency stop installationYes
Number of switches1
Degree of protection (IP), front sideIP65
Version as safety switchNo
Max. rated operation voltage Ue AC690V
Version as reversing switchNo
Version as maintenance-/service switchYes
Version as main switchYes
Suitable for intermediate mountingNo
Rated operation power at AC-23, 400 V15kW
Rated permanent current at AC-21, 400 V32A
Switching power at 400 V15kW
Suitable for front mounting 4-holeNo
Device constructionComplete device in housing
Rated permanent current at AC-23, 400 V32A
Motor drive optionalNo
Suitable for front mounting centreNo
Rated short-time withstand current lcw0.65kA
Colour control elementRed
Voltage release optionalNo
Suitable for distribution board installationNo
Degree of protection (NEMA)12
Suitable for floor mountingYes
With pre-assembled cablingNo
