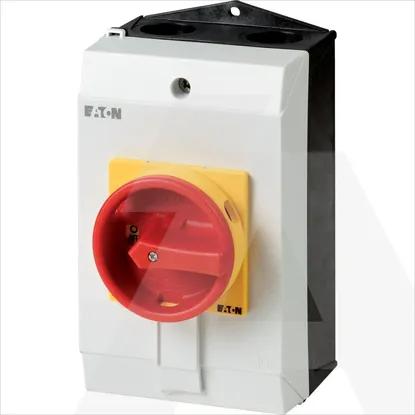

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Width100mm
Depth181mm
Rated operation power at AC-3, 400 V11kW
Height135mm
Number of auxiliary contacts as normally open contact1
Number of poles4
Rated operating voltage690 - 690V
Number of auxiliary contacts as normally closed contact1
Colour control elementRed
Rated permanent current Iu32A
Rated operation power at AC-23, 400 V15kW
Version as maintenance-/service switchYes
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Number of switches1
Conditioned rated short-circuit current Iq1kA
Version as main switchYes
Motor drive integratedNo
Version as emergency stop installationYes
Version as safety switchNo
Suitable for floor mountingYes
Type of control elementDoor coupling rotary drive
Number of auxiliary contacts as change-over contact0
Rated short-time withstand current lcw0.65kA
InterlockableYes
Degree of protection (IP), front sideIP65
Type of electrical connection of main circuitScrew connection
Suitable for intermediate mountingNo
Max. rated operation voltage Ue AC690V
Suitable for distribution board installationNo
Motor drive optionalNo
Voltage release optionalNo
Device constructionComplete device in housing
With pre-assembled cablingNo
Degree of protection (NEMA)12
Rated permanent current at AC-23, 400 V32A
Version as reversing switchNo
Rated permanent current at AC-21, 400 V32A
Switching power at 400 V15kW
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
T3-3-15681/I2/SVB
