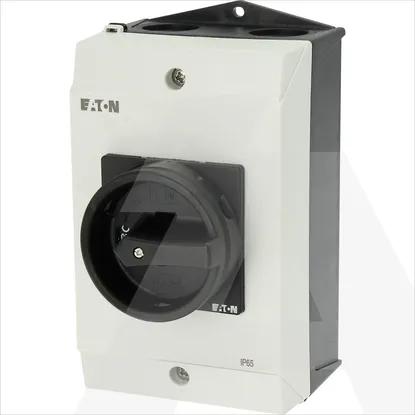

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as maintenance-/service switchYes
Height135mm
Number of auxiliary contacts as change-over contact0
Type of electrical connection of main circuitScrew connection
Degree of protection (IP), front sideIP65
Version as main switchYes
Depth181mm
Number of auxiliary contacts as normally open contact2
Rated operating voltage690 - 690V
Version as safety switchNo
Rated operation power at AC-3, 400 V11kW
Type of control elementDoor coupling rotary drive
Motor drive integratedNo
Width100mm
InterlockableYes
Rated permanent current Iu32A
Number of switches1
Number of poles3
Version as emergency stop installationNo
Conditioned rated short-circuit current Iq1kA
Number of auxiliary contacts as normally closed contact1
Suitable for front mounting centreNo
Suitable for distribution board installationNo
Suitable for intermediate mountingNo
Device constructionComplete device in housing
Rated short-time withstand current lcw0.65kA
Rated operation power at AC-23, 400 V15kW
Colour control elementBlack
Max. rated operation voltage Ue AC690V
Suitable for front mounting 4-holeNo
Degree of protection (NEMA)12
Version as reversing switchNo
Switching power at 400 V15kW
Rated permanent current at AC-23, 400 V32A
With pre-assembled cablingNo
Motor drive optionalNo
Rated permanent current at AC-21, 400 V32A
Voltage release optionalNo
Suitable for floor mountingYes
