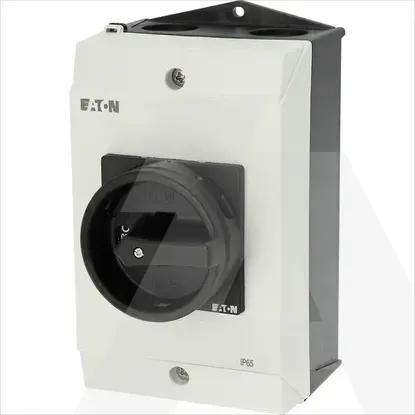

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Width100mm
Height135mm
Number of auxiliary contacts as change-over contact0
Rated operation power at AC-3, 400 V11kW
Rated permanent current Iu32A
Motor drive integratedNo
Version as main switchYes
Version as emergency stop installationNo
Degree of protection (IP), front sideIP65
Version as safety switchNo
Number of auxiliary contacts as normally open contact1
Number of poles6
Rated operating voltage690 - 690V
Type of control elementDoor coupling rotary drive
Conditioned rated short-circuit current Iq1kA
InterlockableYes
Depth181mm
Type of electrical connection of main circuitScrew connection
Number of auxiliary contacts as normally closed contact1
Number of switches1
Suitable for front mounting 4-holeNo
Suitable for floor mountingYes
Rated operation power at AC-23, 400 V15kW
Suitable for front mounting centreNo
Version as maintenance-/service switchYes
Rated short-time withstand current lcw0.65kA
Colour control elementBlack
Suitable for intermediate mountingNo
Device constructionComplete device in housing
Max. rated operation voltage Ue AC690V
Voltage release optionalNo
Motor drive optionalNo
Suitable for distribution board installationNo
With pre-assembled cablingNo
Switching power at 400 V15kW
Rated permanent current at AC-21, 400 V32A
Rated permanent current at AC-23, 400 V32A
Version as reversing switchNo
Degree of protection (NEMA)12
