Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V22kW
Number of switches1
Number of poles2
InterlockableNo
Degree of protection (IP), front sideIP65
Number of auxiliary contacts as change-over contact0
Conditioned rated short-circuit current Iq2kA
Rated permanent current Iu63A
Rated operating voltage690 - 690V
Motor drive integratedNo
Type of electrical connection of main circuitScrew connection
Version as emergency stop installationNo
Rated short-time withstand current lcw1.3kA
Type of control elementToggle
Version as safety switchNo
Suitable for front mounting 4-holeNo
Suitable for floor mountingYes
Version as maintenance-/service switchNo
Colour control elementBlack
Suitable for distribution board installationNo
Rated operation power at AC-23, 400 V30kW
Suitable for front mounting centreNo
Version as main switchNo
Suitable for intermediate mountingNo
Rated permanent current at AC-21, 400 V63A
Device constructionComplete device in housing
Rated permanent current at AC-23, 400 V63A
Version as reversing switchNo
Degree of protection (NEMA)12
Motor drive optionalNo
Max. rated operation voltage Ue AC690V
Voltage release optionalNo
Switching power at 400 V30kW
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

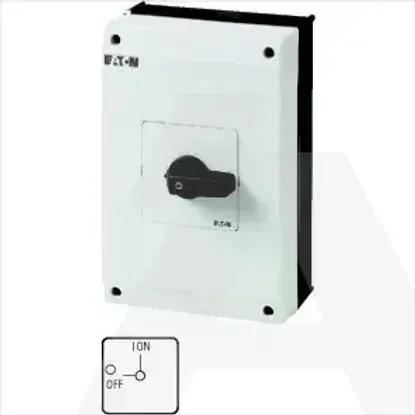

T5B-1-102/I4
