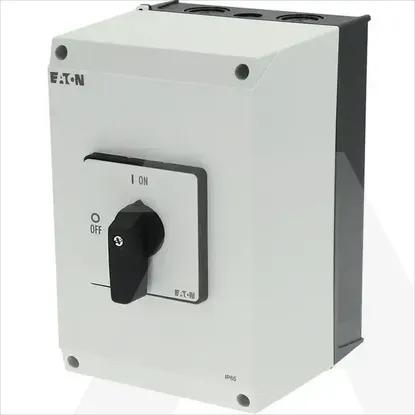

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Width160mm
Depth240mm
Height197mm
Rated operation power at AC-3, 400 V22kW
Suitable for intermediate mountingNo
Type of electrical connection of main circuitScrew connection
Rated permanent current Iu63A
Number of auxiliary contacts as normally open contact1
Rated operating voltage690 - 690V
Number of poles6
Number of auxiliary contacts as normally closed contact1
Rated short-time withstand current lcw1.3kA
Motor drive integratedNo
Type of control elementShort thumb-grip
Suitable for floor mountingYes
Rated operation power at AC-23, 400 V30kW
Version as maintenance-/service switchNo
InterlockableNo
Suitable for distribution board installationNo
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP65
Conditioned rated short-circuit current Iq2kA
Number of switches1
Suitable for front mounting centreNo
Version as emergency stop installationNo
Colour control elementBlack
Version as main switchNo
Suitable for front mounting 4-holeNo
Version as safety switchNo
Max. rated operation voltage Ue AC690V
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V63A
Motor drive optionalNo
Device constructionComplete device in housing
Version as reversing switchNo
Voltage release optionalNo
Rated permanent current at AC-21, 400 V63A
Degree of protection (NEMA)12
Switching power at 400 V30kW
