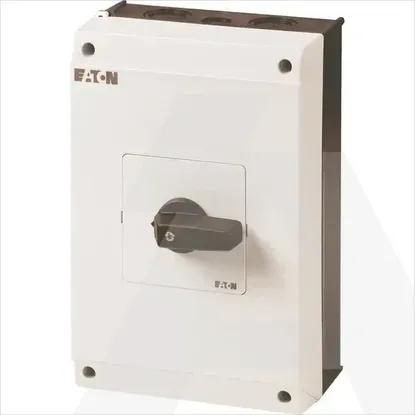

T5B-4-8344/I4
Code: 1043173
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Max. rated operation voltage Ue AC690V
Version as maintenance-/service switchNo
Version as main switchNo
Version as emergency stop installationNo
Rated operating voltage690 - 690V
Rated operation power at AC-3, 400 V22kW
Rated permanent current Iu63A
Rated permanent current at AC-21, 400 V63A
Rated operation power at AC-23, 400 V30kW
Number of poles8
Rated permanent current at AC-23, 400 V63A
Motor drive optionalNo
Switching power at 400 V30kW
Voltage release optionalNo
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally open contact0
Device constructionComplete device in housing
Suitable for front mounting centreNo
Motor drive integratedNo
Suitable for front mounting 4-holeNo
Rated short-time withstand current lcw1.3kA
Suitable for distribution board installationNo
Suitable for intermediate mountingNo
Version as safety switchNo
Number of switches1
Type of control elementShort thumb-grip
Conditioned rated short-circuit current Iq2kA
Version as reversing switchNo
Number of auxiliary contacts as normally closed contact0
Suitable for floor mountingYes
Colour control elementBlack
InterlockableNo
With pre-assembled cablingNo
Type of electrical connection of main circuitScrew connection
Degree of protection (NEMA)12
Degree of protection (IP), front sideIP65
Height197mm
Depth240mm
Width160mm
