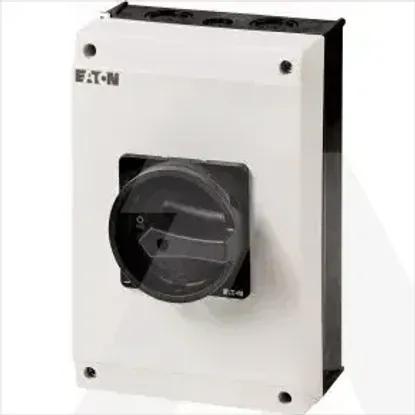

T5B-1-102/I4/SVB-SW
Code: 1043179
ManufacturerEaton
Catalog number207239
TypeT5B-1-102/I4/SVB-SW
CategorySwitch disconnector
EAN code4015082072391
Details
- •Main switch, 2-pole, 63A
- •Low-voltage industrial components
- •Switch disconnector
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Rated operation power at AC-3, 400 V22kW
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-23, 400 V30kW
Rated operating voltage690 - 690V
Number of auxiliary contacts as normally closed contact0
Suitable for intermediate mountingNo
Number of auxiliary contacts as change-over contact0
Version as maintenance-/service switchYes
Suitable for distribution board installationNo
Type of control elementDoor coupling rotary drive
Degree of protection (IP), front sideIP65
Suitable for floor mountingYes
Rated short-time withstand current lcw1.3kA
Motor drive integratedNo
Version as safety switchNo
Suitable for front mounting 4-holeNo
Type of electrical connection of main circuitScrew connection
Colour control elementBlack
Version as emergency stop installationNo
Number of switches1
InterlockableYes
Version as main switchYes
Suitable for front mounting centreNo
Conditioned rated short-circuit current Iq2kA
Device constructionComplete device in housing
Switching power at 400 V30kW
Rated permanent current at AC-21, 400 V63A
Version as reversing switchNo
Rated permanent current at AC-23, 400 V63A
Voltage release optionalNo
Motor drive optionalNo
Degree of protection (NEMA)12
Rated permanent current Iu63A
Number of poles2
Max. rated operation voltage Ue AC690V
