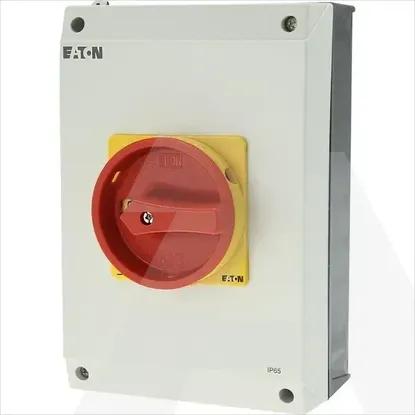

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Width160mm
Suitable for front mounting 4-holeNo
Height204mm
Rated permanent current Iu63A
Degree of protection (IP), front sideIP65
Number of poles6
Number of switches1
InterlockableYes
Version as safety switchNo
Number of auxiliary contacts as normally closed contact0
Type of control elementDoor coupling rotary drive
Colour control elementRed
Rated short-time withstand current lcw1.3kA
Version as maintenance-/service switchYes
Version as emergency stop installationYes
Version as main switchYes
Motor drive integratedNo
Type of electrical connection of main circuitScrew connection
Rated operating voltage690 - 690V
Rated operation power at AC-23, 400 V30kW
Conditioned rated short-circuit current Iq2kA
Suitable for floor mountingYes
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V22kW
Depth240mm
Number of auxiliary contacts as change-over contact0
Version as reversing switchNo
Rated permanent current at AC-23, 400 V63A
Suitable for intermediate mountingNo
Voltage release optionalNo
Rated permanent current at AC-21, 400 V63A
Motor drive optionalNo
With pre-assembled cablingNo
Degree of protection (NEMA)12
Max. rated operation voltage Ue AC690V
Switching power at 400 V30kW
Suitable for distribution board installationNo
Suitable for front mounting centreNo
Device constructionComplete device in housing
