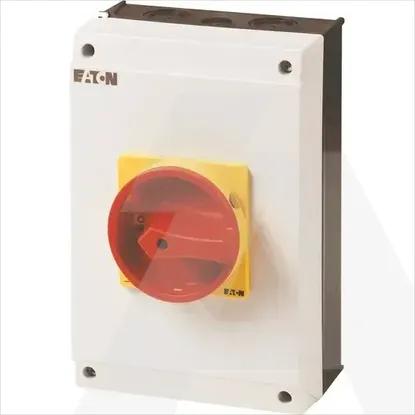

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of poles4
Rated operating voltage690 - 690V
Number of auxiliary contacts as normally closed contact1
Number of auxiliary contacts as normally open contact1
Rated permanent current Iu63A
Height204mm
Rated operation power at AC-3, 400 V22kW
Width160mm
Depth240mm
Version as main switchYes
Type of electrical connection of main circuitScrew connection
Motor drive integratedNo
Version as safety switchNo
Number of switches1
Version as emergency stop installationYes
Degree of protection (IP), front sideIP65
Conditioned rated short-circuit current Iq2kA
Number of auxiliary contacts as change-over contact0
InterlockableYes
Type of control elementDoor coupling rotary drive
Suitable for distribution board installationNo
Max. rated operation voltage Ue AC690V
Rated permanent current at AC-23, 400 V63A
Version as maintenance-/service switchYes
Switching power at 400 V30kW
Suitable for intermediate mountingNo
Suitable for floor mountingYes
Colour control elementRed
Rated short-time withstand current lcw1.3kA
Version as reversing switchNo
Suitable for front mounting centreNo
Rated permanent current at AC-21, 400 V63A
Rated operation power at AC-23, 400 V30kW
Device constructionComplete device in housing
With pre-assembled cablingNo
Motor drive optionalNo
Suitable for front mounting 4-holeNo
Voltage release optionalNo
Degree of protection (NEMA)12
